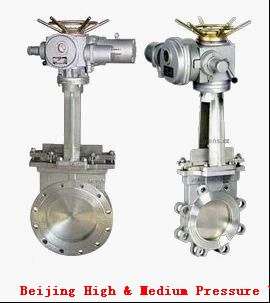

| Product Name：Electric wafer slag valve |
| Product Classification：Slag valves |
| Product Introduction： |
1 medium: water mixture residue, air-water mixture,
2) Temperature: <400 ℃
3 nominal pressure :1.0-1 .6 mpa
4 nominal diameter :40-600mm
|
|
| Description |

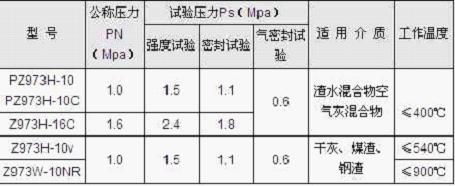

Parameters |
Size Chart |
Application |
|
1 The valves for nominal pressure of 1.0-1.6Mpa, operating temperature <400 ℃ fire station slag mortar systems and hydraulic discharge system piping, or turn off the pipeline medium.

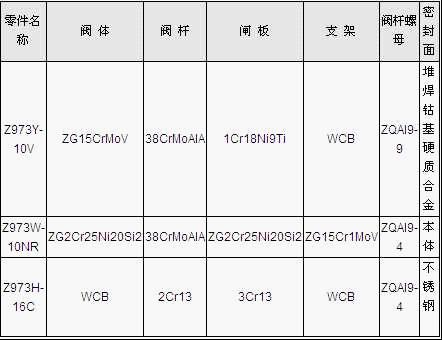

(2) the use of unilateral force the valve seal, seal not only reliable, but also to seal requirements. Body material can be cast iron, carbon steel, stainless steel and PTFE and other materials to meet the requirements of corrosion resistant, etc.
3 short length of this structure, light weight, easy installation and maintenance
4 Temperature: <400 ℃
|
|

|

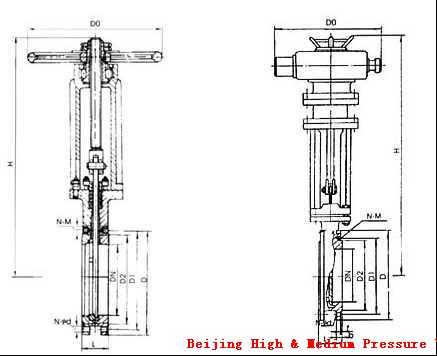

產品外形及結構尺寸示意圖
 |
1, hand wheels, handles and drive mechanism for lifting are not allowed to use, and non-collision.
2, Gate Valve should be installed vertically (ie, stem in a vertical position, the hand wheel at the top).
3, the valve with a bypass valve opens the bypass valve in the open should be preceded by (in order to balance the import and export of pressure and reduce opening force).
4, with the valve drive mechanism, according to the provisions of the product installation instructions.
5, if the valve often used switches, lubrication at least once a month |
|
